| Basic Information | |
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| Chipset | Intel B860 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. |
| Memory | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| General | |
| OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Memory Specifications | |
| Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Motherboard | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| External I/O Ports | 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Others | |
| Software | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Connector & Ports | |
| USB (s) | Chipset: - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Others Information | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Warranty Information | |
| Warranty | 3 Years |

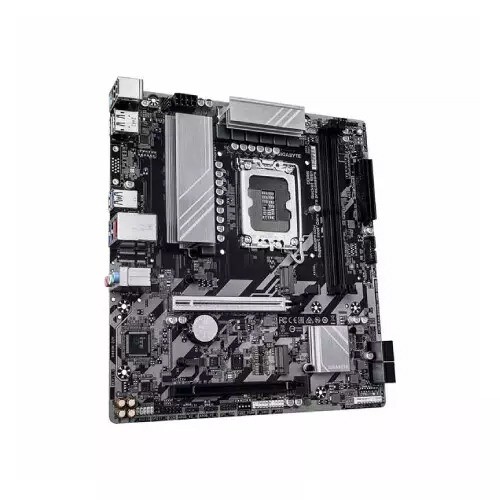

Building a next-gen Intel desktop but stuck choosing the right foundation? The Gigabyte B860M D2H DDR5 is the board that gets your build right from the start.
A weak motherboard kills even the best processor. The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard pairs Intel B860 Express chipset with full DDR5 support, PCIe 5.0 bandwidth, and a feature set that punches well above its Micro ATX form factor. For builders in Bangladesh looking for a dependable mid-range Intel platform, this board deserves serious attention. Browse the full motherboard collection available in Bangladesh at Tech Valley to compare options before you commit.
The Gigabyte B860M D2H DDR5 price in Bangladesh sits at a strong value point for what it delivers. Available at techvalley.bd, it is one of the better-specced B860 boards currently in the local market.
Yes, fully. The LGA1851 socket supports Intel Core Ultra processors, which are the current generation Intel desktop platform. The B860 chipset handles the full range of compatible Core Ultra chips without needing a BIOS update on current stock. Check the full Intel processor price list in Bangladesh at Tech Valley to find the right Core Ultra chip for this board.
The PCIe 5.0 x16 slot from the CPU directly feeds a discrete GPU or NVMe SSD at full bandwidth. That is a meaningful spec at this price tier. Most competing B860 boards either limit PCIe lanes or do not expose PCIe 5.0 from the CPU slot at all.
Pair this with two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors, and storage configuration options are genuinely flexible for both budget and high-performance builds.
The board supports DDR5 from native 5600 MT/s and 6400 MT/s up to 9066 MT/s via overclocking profiles. That is a wide speed range that accommodates entry-level DDR5 kits and high-frequency XMP modules alike.
Two DDR5 DIMM slots support up to 128GB total, with dual-channel memory architecture active when both slots are populated. For users running 32GB or 64GB kits, dual channel gives the Intel Core Ultra's memory controller significantly more bandwidth to work with.
ECC Un-buffered DIMM support (operating in non-ECC mode) adds compatibility for certain workstation-grade memory modules, which matters for IT firms and professional workstation builders. If you are planning a full component upgrade alongside this board, explore all desktop PC components available in Bangladesh at Tech Valley.
PC builders and tech hobbyists putting together a compact Intel Core Ultra desktop in the Micro ATX form factor get a well-rounded platform without overpaying for Z890 features they will not use.
Software developers and IT professionals who need reliable 24/7 workstation performance, 2.5GbE networking, and RAID storage support will find the B860M D2H meets those needs directly. RAID 0, 1, 5, and 10 support across SATA devices is built in.
Content creators and video editors working in 4K workflows benefit from the DisplayPort 2.1 output capable of 3840x2160 at 144Hz, useful for high-refresh 4K monitors connected to the iGPU during editing sessions. If you need a compatible display to go with this build, check out monitor prices in Bangladesh at Tech Valley.
Gamers building mid-range rigs get PCIe 5.0 for the GPU, two M.2 slots for fast NVMe storage, and 2.5GbE LAN for low-latency wired connections. The three ARGB Gen2 headers support RGB fans and strips without a separate controller. Pair this board with a compatible card from the graphics card range available in Bangladesh at Tech Valley for a complete gaming build.
Banks and IT firms procuring workstations in volume will value the 3-year warranty, GIGABYTE Control Center software support, and the board's broad compatibility with standard ATX cases and cooling solutions.
The rear I/O panel covers everyday and professional needs without gaps:
The 2.5GbE Realtek LAN chip is a standout at this price point. Standard Gigabit LAN is common across budget boards. 2.5GbE doubles the wired bandwidth, which matters for NAS transfers, large file sharing across local networks, and low-latency online gaming.
Internal headers add five more USB ports (2x USB 3.2 Gen 1, 4x USB 2.0) through front panel connections, plus S/PDIF Out, a TPM header, and a serial port header for specialized deployments.
The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard carries a 3-year manufacturer warranty. For a motherboard, that coverage period is the right benchmark. Components under the board's control, including power delivery, BIOS, and connectivity, are protected for three full years.
At Tech Valley, our team handles warranty claims, technical issues, and product support directly. Buyers across Bangladesh, from Dhaka to Chittagong to Rajshahi, do not need to navigate international support lines. We manage the full process locally, with fast turnaround on genuine Gigabyte claims.
Use Q-Flash Plus for BIOS updates before CPU installation. The Q-Flash Plus button lets you update the BIOS using a USB drive even without a CPU or RAM installed. If you are buying a Core Ultra processor that requires the latest BIOS, this feature removes a significant installation headache. Browse the latest processor prices in Bangladesh at Tech Valley to pick your CPU alongside this board.
Enable XMP in BIOS on first boot. DDR5 modules default to base JEDEC speeds without XMP active. Enter the GIGABYTE UEFI BIOS, navigate to the memory settings, and enable the XMP profile to run your RAM at its rated speed.
Manage dust in Bangladesh's humid climate. Micro ATX builds often use compact cases with tighter airflow. In Bangladesh's humid and dusty environment, clean your case filters and heatsink fins every 2 to 3 months. Dust on VRM heatsinks and M.2 slots causes thermal throttling over time.
Use GIGABYTE Control Center (GCC) for system monitoring. GCC provides real-time voltage, temperature, and fan speed readouts without third-party tools. Fan speed control through GCC lets you tune thermal profiles for quiet operation or maximum cooling based on workload.
ARGB header planning. The three Addressable RGB Gen2 headers support direct control through GCC. Map your fans and strips before finalizing cable management to avoid routing issues inside compact Micro ATX cases.
The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard price in Bangladesh is available now at techvalley.bd. B860 platform boards with PCIe 5.0 and DDR5 support at this price tier are selling fast as Intel Core Ultra builds gain momentum across the Bangladesh PC market.
Tech Valley stocks genuine Gigabyte products with full local warranty backing. Do not compromise your build foundation on an unverified source. Check live pricing and stock at techvalley.bd and lock in your board before the next inventory cycle.
What is the price of the Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard in Bangladesh?
The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard price in Bangladesh is listed live at techvalley.bd. Check the product page for the current rate as stock and pricing update regularly.
Where can I buy the Gigabyte B860M D2H DDR5 Motherboard in Bangladesh?
The Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard is available at Tech Valley via techvalley.bd, with 3-year warranty support and after-sales service across Bangladesh.
What makes the Gigabyte B860M D2H DDR5 ideal for mid-range Intel builds?
PCIe 5.0 x16, dual DDR5 slots up to 128GB, 2.5GbE LAN, two M.2 PCIe 4.0 slots, and a 3-year warranty make it a well-rounded B860 platform at a competitive price in Bangladesh.
Which Intel processors are compatible with the Gigabyte B860M D2H DDR5?
It supports Intel Core Ultra processors via the LGA1851 socket. The B860 Express chipset is designed specifically for the current Intel Core Ultra desktop lineup.
Does the Gigabyte B860M D2H DDR5 support PCIe 5.0?
Yes. The primary x16 slot runs PCIe 5.0 directly from the CPU, delivering full bandwidth for next-generation discrete GPUs and PCIe 5.0 NVMe SSDs.
What is the maximum RAM speed supported by the B860M D2H DDR5?
It supports DDR5 up to 9066 MT/s via overclocking profiles and 6400 MT/s at native speed, with XMP support for automatic speed configuration through BIOS.
Gigabyte B860M D2H DDR5 vs MSI PRO B860M-A DDR5: which is better?
Both are solid B860 Micro ATX boards. The Gigabyte B860M D2H offers Q-Flash Plus, three ARGB headers, and 2.5GbE LAN, giving it a connectivity edge at a comparable price in Bangladesh.
Does the Gigabyte B860M D2H DDR5 support RAID storage?
Yes. It supports RAID 0, 1, 5, and 10 across the four SATA 6Gb/s connectors, suitable for NAS-style storage configurations in workstation and office builds.
What display outputs does the B860M D2H DDR5 have?
It has one DisplayPort 2.1 (up to 3840x2160 at 144Hz) and one HDMI 2.1 (up to 4096x2160 at 60Hz) for integrated graphics output.
Does the Gigabyte B860M D2H DDR5 have RGB support?
Yes. It includes three Addressable RGB Gen2 headers controllable via GIGABYTE Control Center software for fans, strips, and other ARGB accessories.
The latest price of Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard in Bangladesh is 17,304৳ You can buy the Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard at best price from our Website or visit any of our showrooms.
